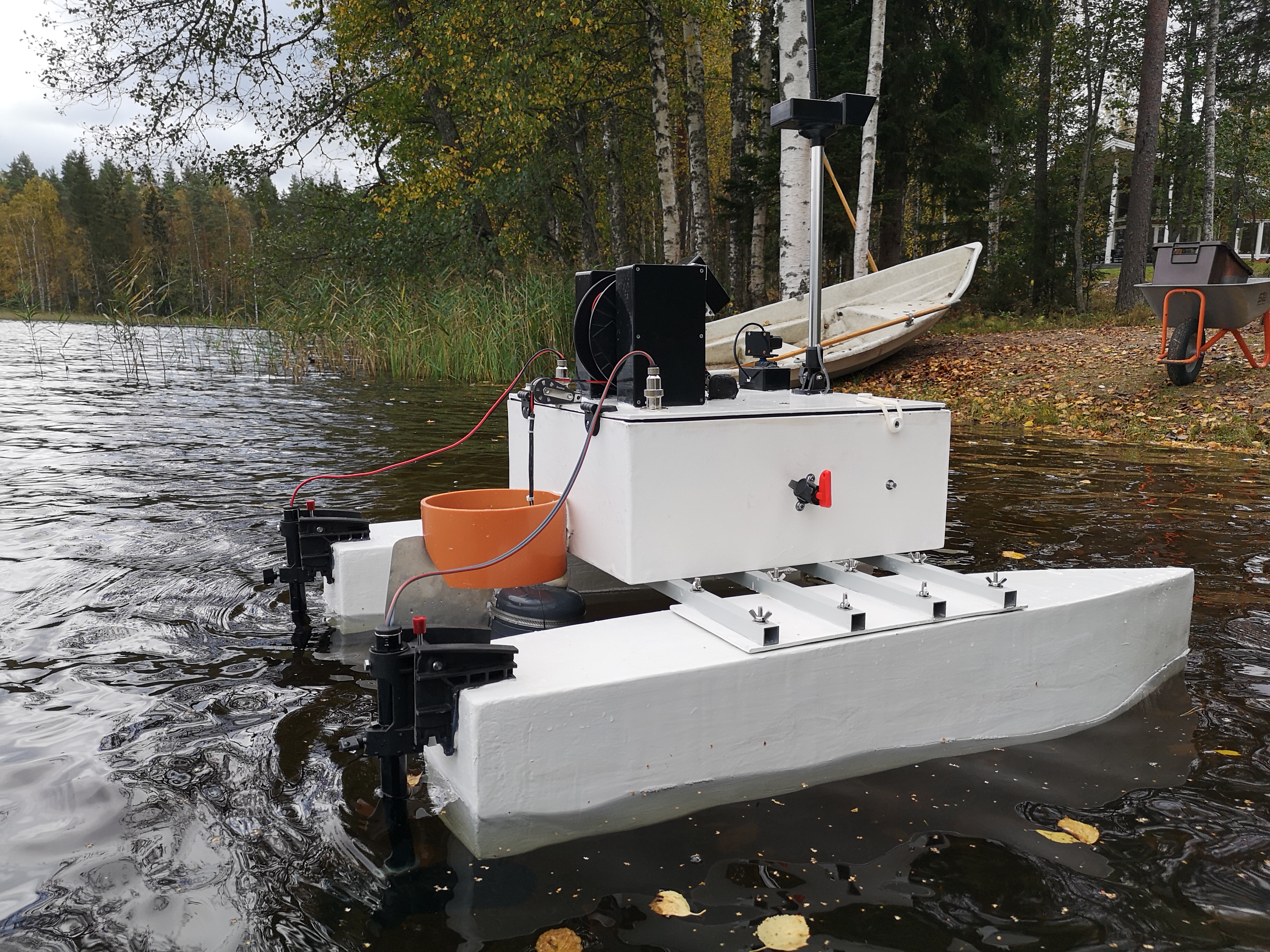

Integrated Maritime Autonomous Surveyor Drone

"Scan & Navigate with Ease and Accuracy: Usability, Speed, Precision"

What does exactly it do?

Our product provides you with innovative features.

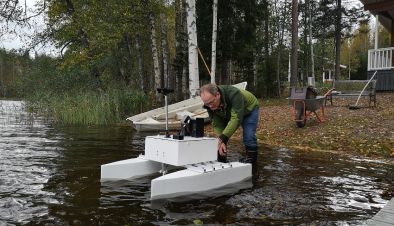

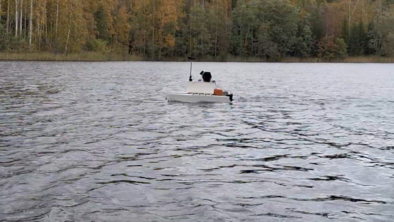

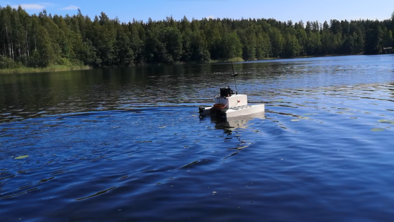

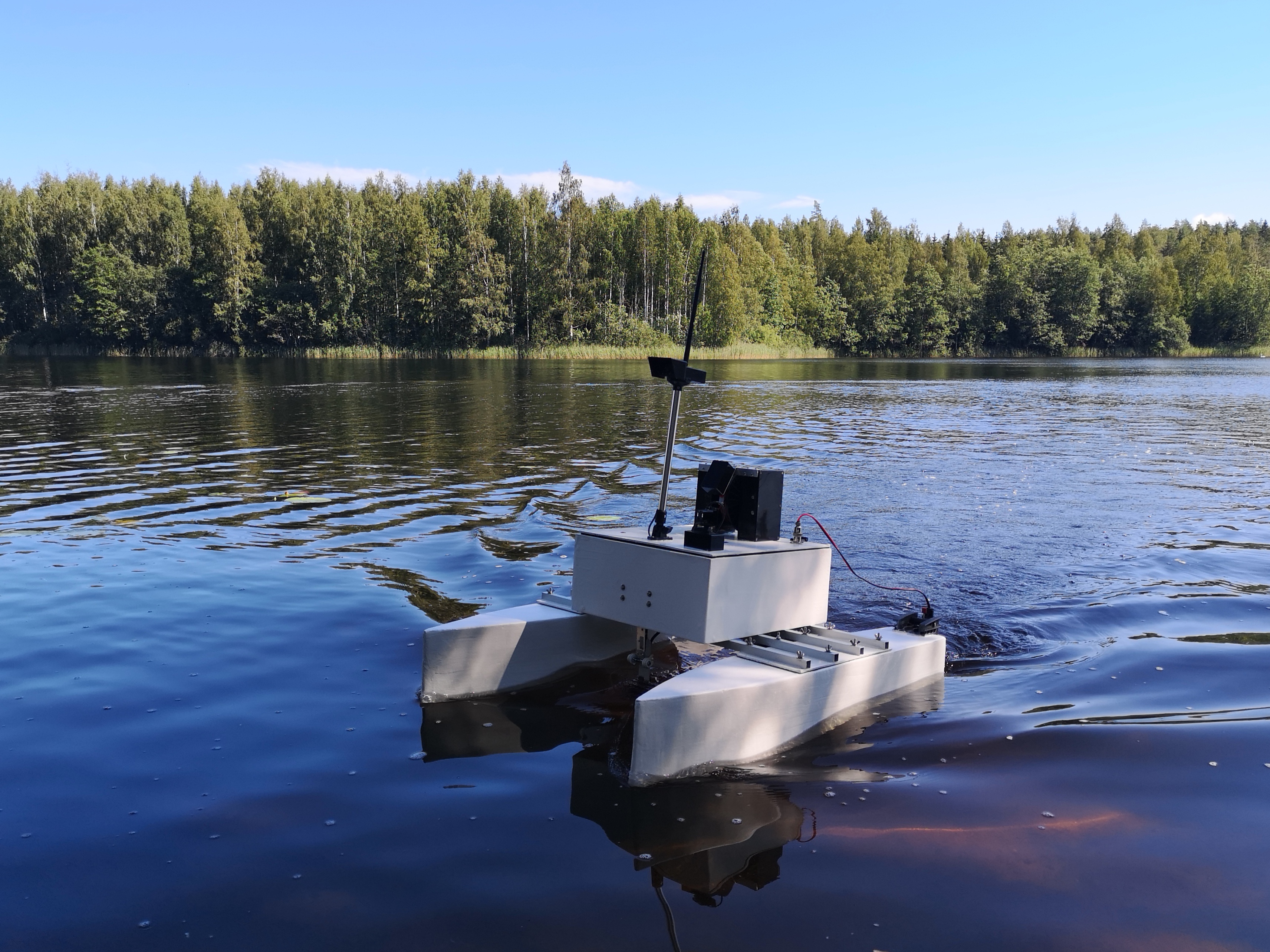

Autonomous drone boat for search & mapping

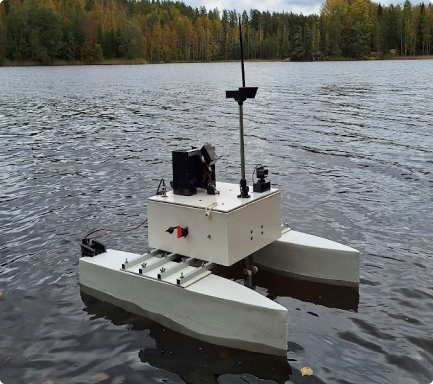

Equipped with GPS, sonar, and high-resolution underwater camera

Seamless autonomous and manual drive modes

Point and Drag to create route map

Inspect point of interest by clicking on the drone route, measure location, water depth & distances

2D and 3D sonar data rendering, video playback, & export 3D model

It offers a range of capabilities and applications, including:

Used to precisely assess and visualize the concentration and distribution of fish populations in aquatic environments.

Enables comprehensive ecological studies and aiding in the conservation and protection of these critical underwater ecosystems.

Provides safer and more efficient means to investigate, uncover their historical significance, & enhance the diving experience of different people.

Enables comprehensive ecological assessments and informed conservation strategies to protect these vital aquatic ecosystems.

Facilitates thorough quality checks of commercial fish ponds, ensuring optimal conditions for fish health and growth.

Provides a safe and efficient method for assessing pit conditions, water quality, and environmental compliance in the mining industry.

Displayed below are the product specifications:

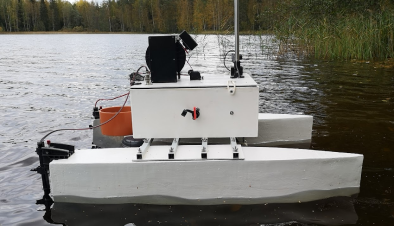

Vehicle Specs:
Weight:	20kg (portable by 1-2 People)
Length:	1m, draught 0.3m
Battery Capacity:	40Ah, 12V LifePo
Motors:	2x brushed electric motor, (one on each side)
Operating Speed:	~4.5km/h
Onboard Side-scan Sonar:	Simrad Go7 XSE
Data Link:	Wi Fi, ~200 250m (maximum range)
